Project

Create a test fixture for a prototype PCB

Designed, developed, and built...

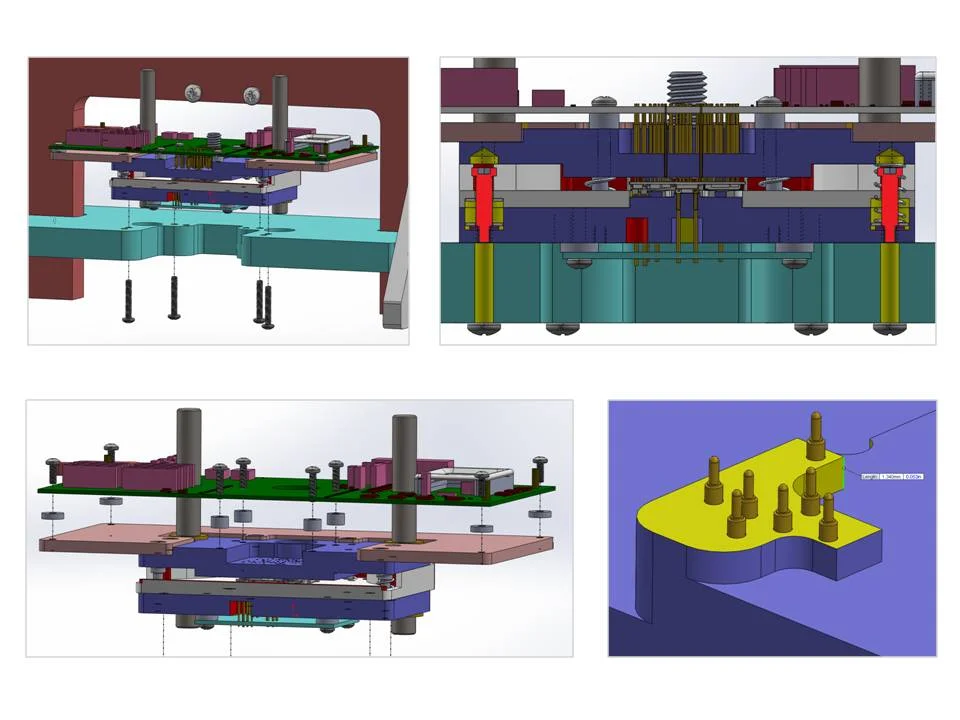

a two stage PCB test fixture to accurately mate over 90 pogo pins on pads smaller than 0.7mm square.
fixtures used to program hundreds of prototype boards
improved designs of complex test fixtures for better assemblability, pin alignments, and overall usability
design guidelines for pogo pin selection and usage from lessons learned
